When it comes to mechanical power transmission, timing pulleys play a crucial role in ensuring precise and synchronized movement between different components. Whether it is a conveyor system, a packaging machine, or an automated assembly line, timing pulleys help maintain the rhythm and consistency of mechanical functions. Selecting the right timing pulley is more than just choosing a component that fits. It requires a thorough understanding of the machinery’s requirements, the operating environment, and the expected load capacity. A well-chosen pulley can improve performance, reduce maintenance, and extend the life of the system. At Aashapuri Engineering, we have been dedicated to manufacturing high-performance power transmission components for industries across India. As a trusted timing pulley manufacturer in India, we understand that every industrial setup has unique needs. The selection process should be based on informed technical parameters and practical knowledge rather than assumptions or standard choices.
In this blog, we will take a detailed look at how to select the correct timing pulley for industrial applications. From understanding material compatibility to matching belt profiles and evaluating torque loads, this guide aims to provide clarity on every aspect of the selection process. The goal is to help you make confident decisions that result in optimal performance, long-term efficiency, and system reliability.
Understanding the Role of Timing Pulleys in Industrial Applications

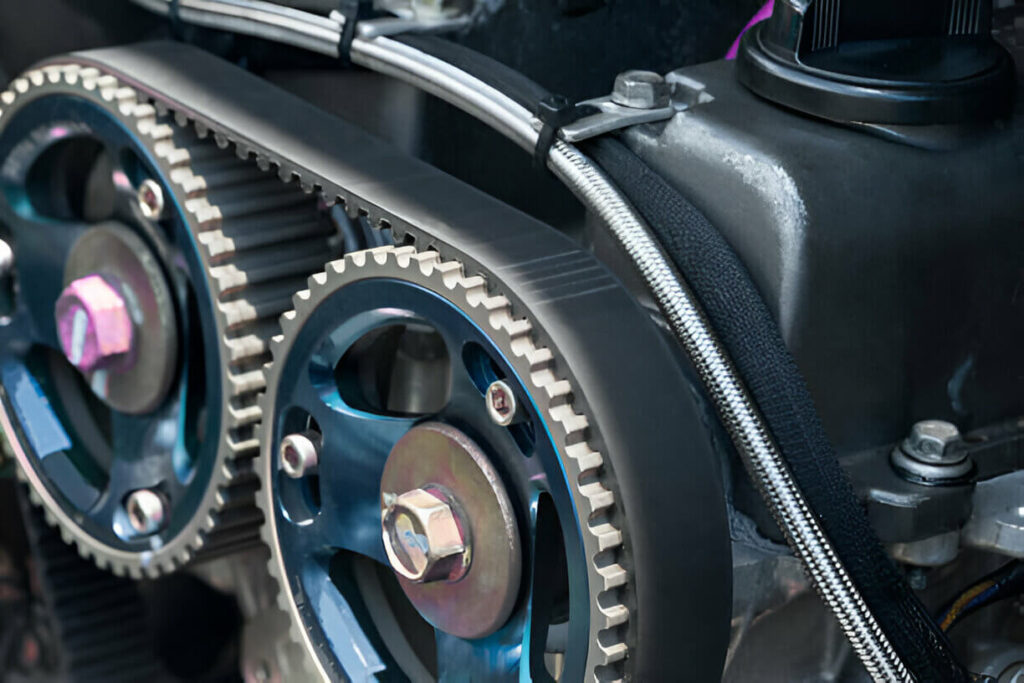

A timing pulley is a specialized wheel with teeth or grooves designed to engage with the matching teeth of a timing belt. Together, they form a synchronous drive system that transfers motion and power with high accuracy. The defining feature of a timing pulley is its ability to prevent slippage, ensuring that the motion between connected shafts remains consistent. In industrial applications where timing is critical, such as robotics, packaging systems, CNC machinery, and material handling equipment, the timing pulley enables precise coordination.
The use of timing pulleys is not limited to a single function. They can either drive, be driven, or act as idlers. The direction of rotation, speed, and torque are all influenced by the pulley’s design and dimensions. The importance of proper selection becomes apparent when incorrect pulley specifications lead to belt wear, misalignment, or vibration. This, in turn, affects the system’s stability, resulting in downtime and increased maintenance.
Industries depend on reliability. A timing pulley that fails in a continuous production environment can disrupt entire operations. Therefore, selecting the right pulley begins with understanding the purpose it will serve, the system it will integrate with, and the environment it will function in.
Key Factors to Consider Before Selecting a Timing Pulley
Selecting the correct timing pulley requires the consideration of multiple factors, each with direct implications on the system’s performance. Ignoring any of these can lead to system inefficiency or premature component failure.
1. Pulley Material and Operating Conditions
The material of the pulley must match the operating environment. For instance, aluminum pulleys are lightweight and suitable for high-speed applications, while steel pulleys offer durability and strength for heavy-duty operations. In corrosive environments or in the food processing industry, stainless steel or coated pulleys may be necessary to prevent contamination or corrosion.
Each material has different wear characteristics, thermal tolerance, and cost implications. Choosing the appropriate material ensures longevity and efficiency without compromising safety or performance.
2. Tooth Profile Compatibility
Not all timing belts have the same tooth profile. Common profiles include trapezoidal (like MXL, XL, L, and H) and curvilinear (such as HTD, GT, or RPP). The timing pulley must match the belt’s tooth profile precisely. Mismatched profiles can cause belt slippage, increased friction, and rapid wear.
Matching profiles also ensure that the belt maintains its alignment and properly engages with the pulley teeth, especially under load.
3. Pulley Diameter and Pitch
The pitch of a timing pulley refers to the distance between the centers of two adjacent teeth. The pulley’s pitch must match the pitch of the timing belt. Similarly, the number of teeth on the pulley will determine the system’s speed ratio and torque transfer.
A larger pulley diameter allows for smoother motion and less stress on the belt but may take up more space. On the other hand, smaller pulleys are compact but can cause higher belt tension and stress.
4. Bore Size and Shaft Compatibility
The bore of the pulley must match the shaft diameter it will be mounted on. In some cases, the shaft may have a keyway or a specific locking mechanism, such as a taper lock or QD bush. Precision-fit bores ensure proper mounting and minimize vibration during operation.
Additionally, proper alignment during installation ensures the longevity of both the pulley and the belt.
5. Load Conditions and Torque Transfer
The amount of torque the system needs to transfer directly affects the pulley size and material selection. High-torque applications require pulleys with more surface contact and stronger materials. This prevents belt slip and ensures the pulley teeth do not deform under pressure.
Understanding load conditions also helps determine the right belt tension and number of contact teeth needed for efficient operation.
Specialized Applications and Their Timing Pulley Requirements
Each industry has its own set of challenges and requirements when it comes to timing pulleys. Let us explore a few specific applications and how timing pulleys are selected accordingly.
Packaging and Printing Machines
These systems demand high-speed precision and synchronous movement. Here, lightweight pulleys with high tooth engagement are preferred to reduce inertia and maintain exact registration. Pulleys used in such systems often need to accommodate timing belts with low backlash.
Textile Industry
In textile machinery, vibration-free performance and resistance to fiber buildup are crucial. Stainless steel or anti-static pulley materials are selected to reduce maintenance and increase operational cleanliness.
Material Handling Systems
These systems rely on torque handling, alignment, and durability. Timing pulleys with larger diameters and reinforced teeth are chosen to handle the load and maintain continuous motion without jerks or slippage.
Robotics and Automation
Precision is the highest priority in robotics. Small, high-accuracy pulleys with fine-tooth profiles and minimal backlash are ideal for delivering precise motion control in robotic arms or pick-and-place units.
Importance of Proper Alignment and Installation
Even the best timing pulley will fail if not installed properly. Alignment plays a significant role in the overall performance of a timing drive system. Misaligned pulleys can cause the belt to track incorrectly, leading to uneven wear, vibration, and premature failure.
During installation, it is important to ensure that
- The shaft and bore are free from debris
- The pulley is properly secured with the correct fit
- Setscrews, keys, or locking mechanisms are applied as required
- The belt is correctly tensioned
Routine checks and inspections after installation ensure that the pulley maintains its alignment under load and throughout continuous operation.
Maintenance Practices to Prolong Pulley Life
Like all mechanical components, timing pulleys require regular maintenance to ensure optimal function and prevent unexpected breakdowns. Some best practices include
- Periodic visual inspection for signs of wear or misalignment
- Checking belt tension and condition
- Cleaning pulleys to prevent material buildup
- Lubricating components if specified by the system design
Maintenance schedules should be customized based on operational frequency, environmental conditions, and load capacity. Implementing a preventive maintenance routine is always more efficient and economical than reactive repairs after a failure.
Common Mistakes to Avoid During Pulley Selection
Despite their widespread use, many industries still make common mistakes during pulley selection that lead to poor performance or increased maintenance costs.
Assuming All Pulleys Are the Same
Pulleys may look similar but can vary widely in terms of material strength, tooth precision, and bore accuracy. Selecting a pulley solely based on external size or generic descriptions can lead to mismatch and inefficiency.
Ignoring Belt Type Compatibility
Different belts require specific pulley profiles. Using the wrong pulley may cause the belt to wear quickly or slip under load, defeating the purpose of a timing system.
Choosing Cost Over Quality
In many industrial settings, cost constraints lead to compromises on quality. However, the small savings from a low-grade pulley are often offset by higher maintenance costs, downtime, and replacements.
Improper Sizing Based on Torque
Selecting pulleys without calculating torque and load capacity may result in mechanical failures under stress. It is important to consult design specifications or technical support when determining the appropriate pulley size.
Customization for Unique Industrial Needs
Some industrial systems cannot operate with standard timing pulleys due to space constraints, torque variations, or speed requirements. In such cases, customized pulleys provide the necessary flexibility.
Customization may involve:
- Specific bore diameters or keyway slots
- Unique tooth profiles or pitches
- Special coatings for corrosion or wear resistance
- Modified flange designs for alignment
At Aashapuri Engineering, we specialize in understanding complex industrial needs and delivering precision-manufactured, customized timing pulleys that align with performance and design expectations. Our team collaborates with engineers and system designers to deliver components that fit perfectly within the intended mechanical architecture.
Environmental and Operational Influences on Pulley Performance
Environmental factors can influence pulley behavior significantly. Exposure to extreme heat, humidity, dust, or chemicals can degrade materials or affect belt-pulley interaction. Selecting pulleys with protective coatings or corrosion-resistant materials can mitigate these risks.
Likewise, operational factors such as intermittent usage, sudden start-stop cycles, and load variations must be considered. Pulleys designed for steady, low-load operations may not perform well in high-intensity systems without adequate support.
Understanding both environmental and operational contexts helps engineers and plant operators select pulleys that provide consistent performance and long service life.
Advancements in Pulley Technology and Manufacturing
The manufacturing of timing pulleys has evolved significantly in recent years. Computer-aided design (CAD), CNC machining, and advanced materials have led to pulleys with tighter tolerances, smoother finishes, and better weight-to-strength ratios.
Modern pulleys now come with features such as
- Anti-backlash designs for high-precision applications
- Lightweight construction for energy efficiency
- Improved surface coatings for wear resistance
- Integrated balancing to reduce vibration
These advancements have improved system reliability while allowing for more compact and efficient machine designs.
As a leading timing pulley manufacturer, Aashapuri Engineering has adopted these technological developments to enhance the quality, precision, and durability of our products. Our commitment to innovation ensures that our clients receive the most efficient components for their systems.
Summary: Selecting the Right Timing Pulley Is an Engineering Decision
Timing pulleys are small yet essential components in modern machinery. Their performance impacts the efficiency, precision, and longevity of mechanical systems across a wide range of industries. Selecting the right timing pulley is not about guesswork. It involves understanding system requirements, matching belt profiles, considering operational load, and evaluating environmental influences.
From tooth profile to material composition and shaft compatibility, every detail matters. Businesses that invest time and effort into proper pulley selection are rewarded with fewer breakdowns, improved productivity, and long-term cost savings.
At Aashapuri Engineering, we believe that industrial progress begins with precise components. As a trusted timing pulley manufacturer in India and a reliable timing pulley manufacturer in India serving various industrial sectors, we are committed to offering dependable solutions that power the nation’s industries forward.To learn more about how the right timing pulley can improve your machinery’s performance, connect with Aashapuri Engineering today. Let our experts help you select, design, or customize the ideal pulley for your industrial needs
